Portable connect networks routing inspection system

Introduction
Function
Applications

This system consists of the following modules: high-definition collecting module, precise location along the pillar, night supplementary light, data storage, image processing and identification, data statistics and analysis modules. It can complete the condition collect of connect networks in specified area. It adopts potable video collecting device and is temporarily installed on the driver’s platform of the running motor train unit and collects video of the conditions of connect networks then makes statistics and analysis about conditions of hanging parts.

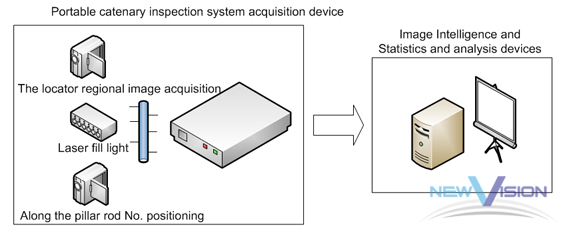

Demonstration of system composition

1. Make high-definition of video on the connect networks condition and its operational environment.

Image of locator area

2. Automatically judge whether components of contact networks devices and hanging parts have obvious mechanical damage;
3. Automatically judge the surrounding environment around contact networks power, which may cause danger to it; invade to limited area or hinder the running of locomotive;
4. Accurately locate the pillars along the rails and hanging pillars in the tunnel; accurately snap-shot the location of key locators and store distinct images;
5. Make graded statistics and intelligent analysis about all troubles and segments of contact networks and generate a chart that can be analyzed.
